Zigbee LAN POE Coordinator SMLIGHT SLZB-MR1 Multiradio

SMLIGHT SLZB-MR1 Zigbee & Matter Coordinator (LAN | USB | Wi-Fi)

Advanced multi-protocol coordinator for Home Assistant and Zigbee2MQTT users

The SMLIGHT SLZB-MR1 is a powerful, next-generation smart home coordinator built around the EFR32MG24 chip with a Cortex-M33 core. It’s designed for seamless integration into advanced home automation setups, supporting Zigbee, Matter-over-Thread, and dual-protocol operation.

Compatible with all major smart home ecosystems:

• Works with Home Assistant

• Works with Zigbee2MQTT

• Works with ZHA

Key Features

Dual-Radio Support – Zigbee and Thread at the Same Time
Thanks to the advanced capabilities of the EFR32MG24, the SLZB-MR1 can operate both Zigbee and Thread protocols simultaneously, allowing for mixed-network environments and future-proof integration with Matter devices without sacrificing your existing Zigbee network.

Multi-Mode Connectivity
Use LAN, USB, or Wi-Fi depending on your preferred setup. Flexibility to suit both hobbyist and professional installations.

Power Options: PoE or USB
Power the device with either Power-over-Ethernet (PoE) or micro-USB. A micro-USB to USB-C adapter is included for maximum compatibility.

Pre-Flashed and Ready to Use
No need to flash firmware. It’s pre-configured for use with Home Assistant, Zigbee2MQTT, or ZHA, and supports automatic OTA (Over-The-Air) firmware updates for both Zigbee and core components.

High-Performance Hardware
Equipped with a +20 dBm amplifier and 5 dBi antenna for extended range and network reliability.

Secure Networking
Includes VPN tunneling support with Home Assistant, a secure password-protected web interface, and built-in whitelist firewall functionality.

Multi-Coordinator Support
Use multiple SLZB-MR1 devices across buildings or larger properties. Integrates smoothly with Zigbee2MQTT and Home Assistant for distributed and scalable smart home networks.

Multi-Language Interface
Web-based interface with support for 15 languages.

LED Status Indicator
Onboard LED for diagnostics and visual feedback, with control options.

Compact and Discreet Design
Just 106 x 22 x 24 mm – small enough to tuck behind panels or blend into your setup.

What’s Included

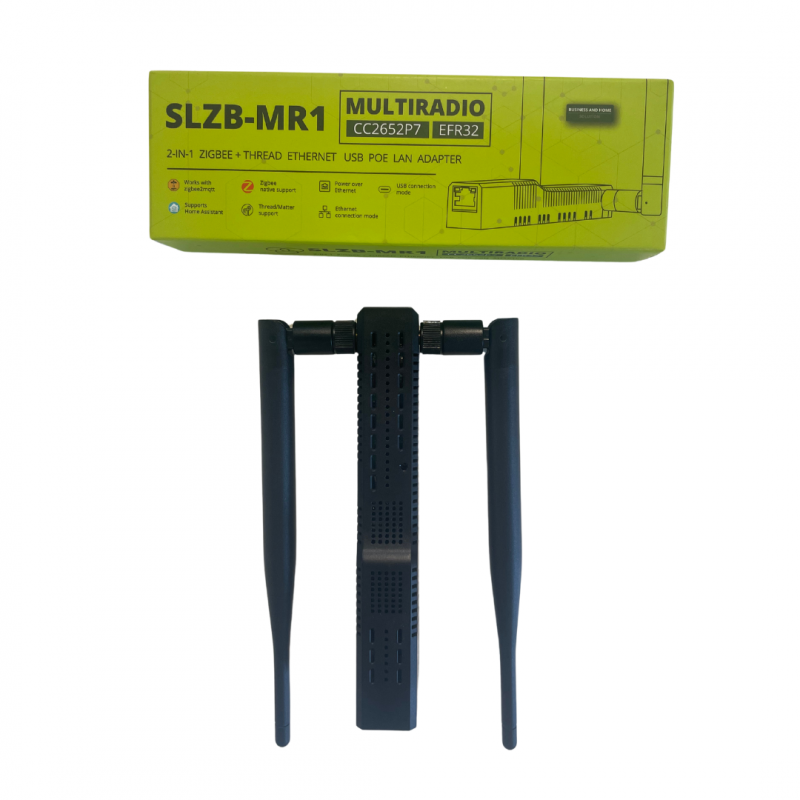

• 1x SMLIGHT SLZB-MR1 Zigbee/Matter Coordinator

• 1x 5 dBi External Antenna

• 1x Micro-USB to USB-C Adapter

• 1x Quick Start Guide with QR Code

• 2x Adhesive Mounting Pads

The SLZB-MR1 is the ideal choice for anyone building a modern smart home. With dual-protocol support, future-ready Matter integration, and robust connectivity options, it’s a serious tool for users who want total control over their setup.
